JM系列挖掘机破碎斗

分享到微信

×

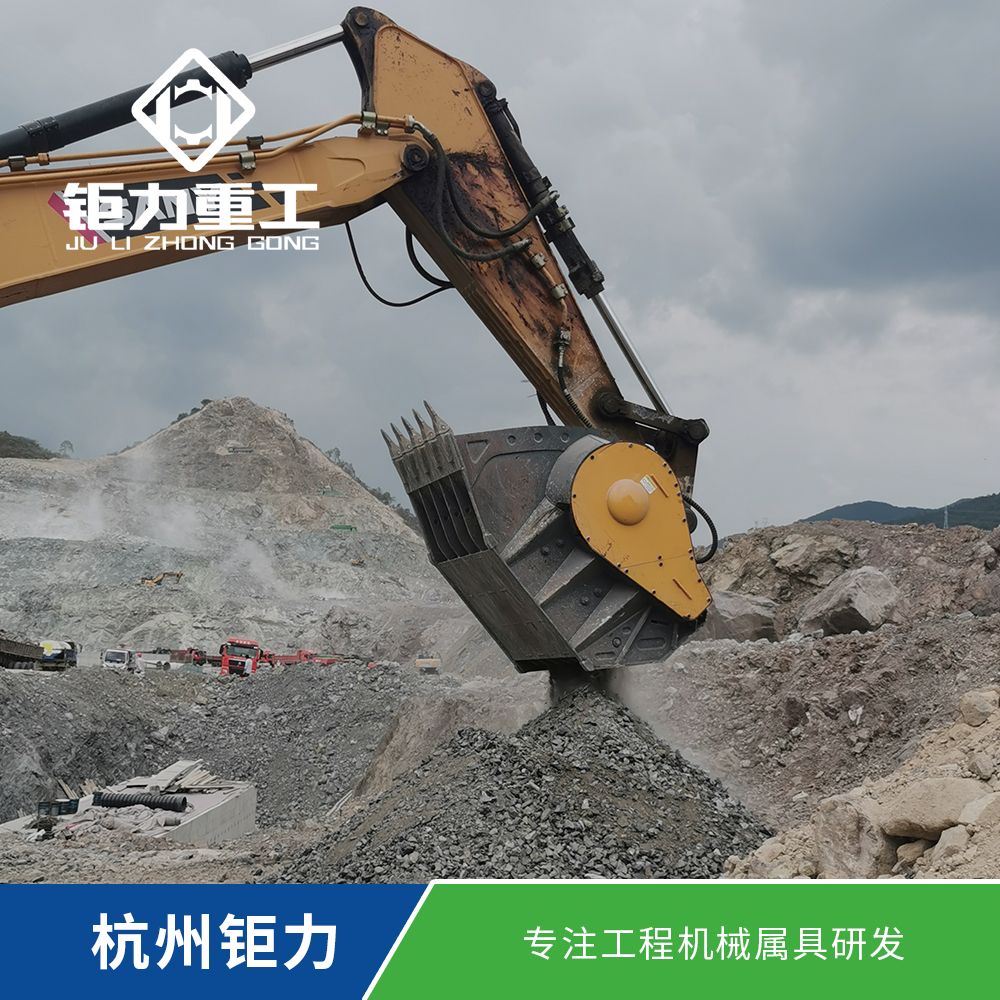

借助挖机底盘的液压动力和挖机本身的动作功能实现该破碎斗自己装料、自己破碎的功能。
产品详情

  产品介绍:

  a、借助挖机底盘的液压动力和挖机本身的动作功能实现该破碎斗自己装料、自己破碎的功能。

  a、 高速液压马达通过皮带驱动飞轮实现石料破碎。

  产品特点:

  a、JM系列破碎斗破碎口宽度宽,更加便于加工大直径石料,出料更快、产量更高。

  b、皮带柔性传动,减少整机机械冲击。

  c、节能环保、减少运输成本、就地取才、就地破碎。

  D、可以破碎水泥块、建筑垃圾、鹅卵石、青石、玄武石、矿石等多种石料。

  应用范围:

  a、特别适用于物料的就地破碎。

  b、适用领域广:拆除工地、建筑工地、工业区和市政区规划、挖掘材料处理、土木工程、道路作业、采矿、矿山、制沙场等多种场合使用。

  c、可以破碎混泥土块、鹅卵石、青石、玄武石等多种物料。

  d、出料大小15-150mm可调。

  参数表:

型号

适配挖机型号(吨)

挖斗容量

立方

重量

(千克)

工作压力

兆帕

更高压力

兆帕

流量

升/分钟

进料口尺寸

(毫米)

排料口调整范围

(毫米)

JM600

6-12

0.5

800

15

31.5

90

610x500

15-100

JM750

12-20

0.6

2500

15

31.5

140

740x510

15-120

JM900

20-25

0.9

3500

15

31.5

160

910x500

15-150

JM900-PRO

25-30

1.1

4000

15

31.5

180

910x540

15-150

JM1200

30-40

1.3

5500

15

31.5

210

1200X540

15-150

JM1400

40-50

1.6

6800

15

31.5

320

1400x600

15-200

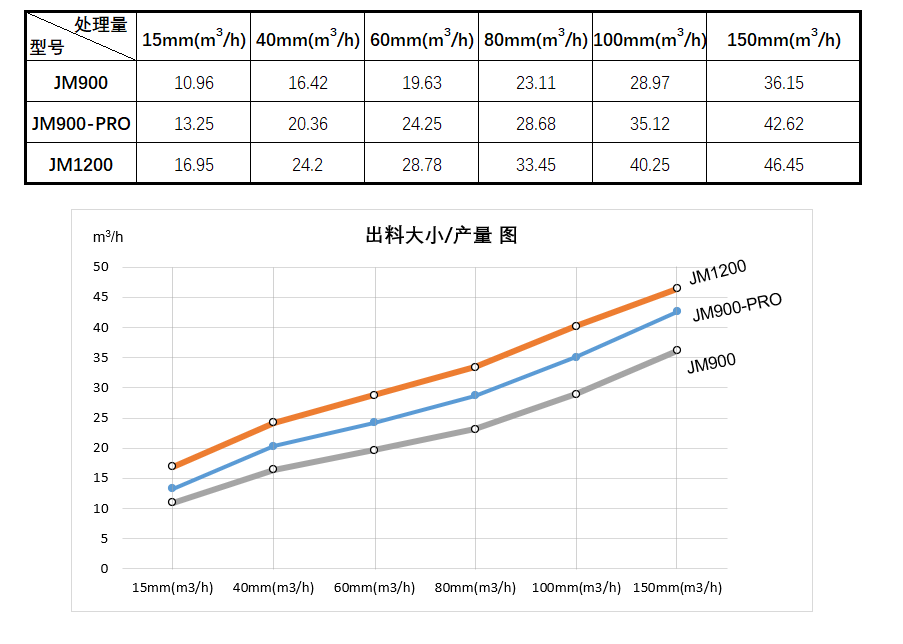

  处理量参考图:

JM系列挖掘机破碎斗
JM系列挖掘机破碎斗

JM series excavator crushing bucket

分享到微信

×
With the help of the hydraulic power of the excavator chassis and the action function of the excavator itself, the function of self-loading and self-crushing of the crushing bucket is realized.
13588420701
Product Details

  Product Introduction:

a. With the help of the hydraulic power of the excavator chassis and the action function of the excavator itself, the crushing bucket can be loaded and crushed by itself.

a. The high-speed hydraulic motor drives the flywheel to crush the stone.

  Features:

a. JM series crushing bucket has a wide crushing opening width, which is more convenient for processing large-diameter stones, faster discharging and higher output.

b. The belt is flexibly driven to reduce the mechanical impact of the whole machine.

c. Energy saving and environmental protection, reducing transportation costs, picking talents on the spot, and crushing on the spot.

D. It can crush cement blocks, construction waste, pebbles, bluestone, basalt, ore and other stones.

  Applications:

a. It is especially suitable for in-situ crushing of materials.

b. Wide range of applications: demolition sites, construction sites, industrial and municipal planning, excavation material processing, civil engineering, road operations, mining, mining, sand making and other occasions.

c. It can crush concrete blocks, pebbles, bluestone, basalt and other materials.

d. The discharge size is 15-150mm, which can be adjusted.

  Parameter Table:

Model

Suitable for excavator model (tons).

Bucket capacity

(Cubic).

weight

(kg)

Work pressure

(MPa).

Higher pressure

(MPa).

flow rate

(l/min).

Inlet size

(mm)

Discharge opening adjustment range

(mm)

JM600

6-12

0.5

800

15

31.5

90

610x500

15-100

JM750

12-20

0.6

2500

15

31.5

140

740x510

15-120

JM900

20-25

0.9

3500

15

31.5

160

910x500

15-150

JM900-PRO

25-30

1.1

4000

15

31.5

180

910x540

15-150

JM1200

30-40

1.3

5500

15

31.5

210

1200X540

15-150

JM1400

40-50

1.6

6800

15

31.5

320

1400x600

15-200

  Throughput reference chart:
